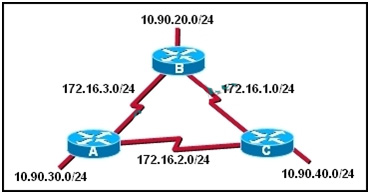

Refer to the exhibit. RIPv1 is configured as the routing protocol for the network that is shown. The following commands are used on each router:

router rip
network 10.0.0.0
network 172.16.0.0
When this configuration is complete, users on the LAN of each router are unable to access the remote LANs. Why?

The network statements are configured incorrectly.
A routing loop has been created.
RIPv1 is unable to route to discontiguous subnets of a major network.
RIPv1 is unable to route networks with a /24 subnet mask.
